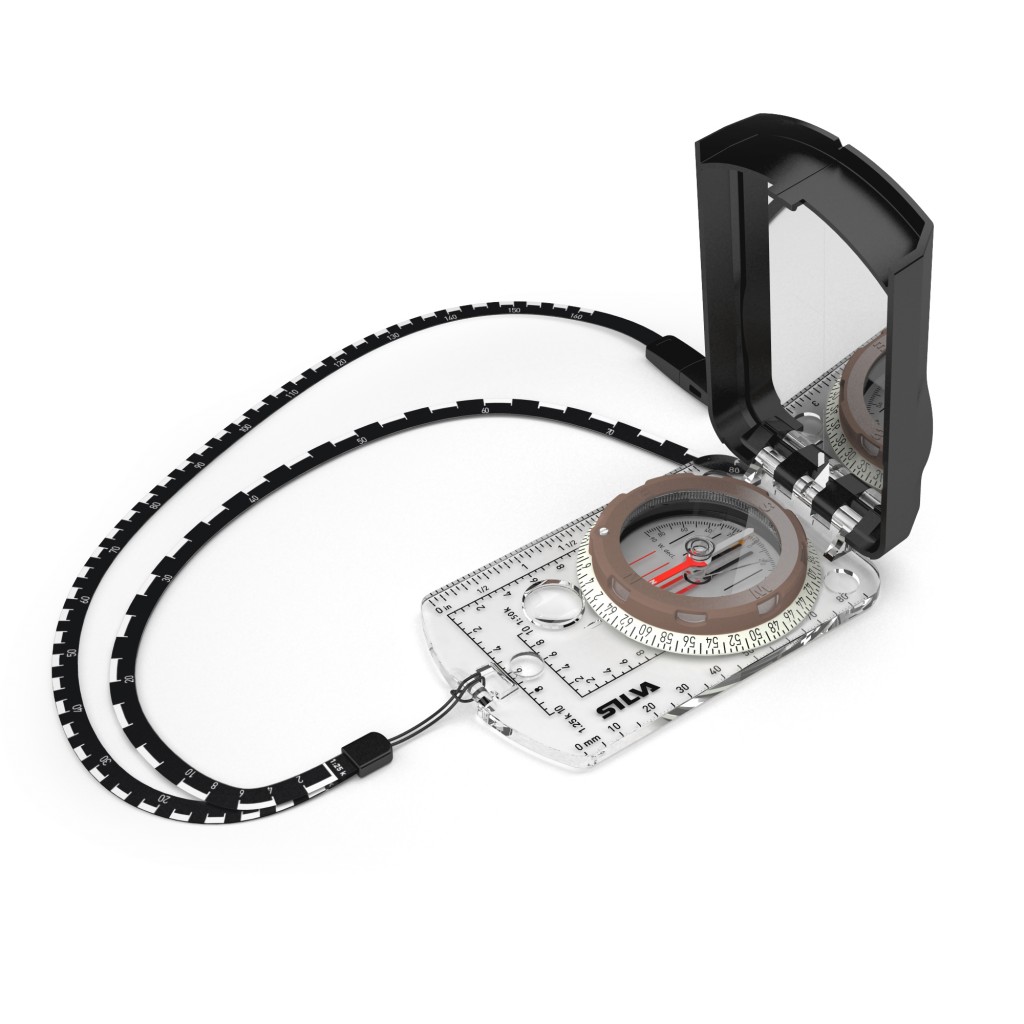

The sighting compass for experienced navigators – used by NATO Forces around the world. Mainly used by the infantry as a soldier’s or officer’s compass.
Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass has a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgement of your route or to plan your route in advance.
Specification
| Accuracy | ± 1° (17.8 mils) |
|---|
| Altitude use | 5000m @-15 °C |
|---|
| Clinometer | Yes |
|---|
| Declination adjustment | Yes |
|---|
| Graduation | 5400° / 360° |
|---|
| Illumination | 4 hours after activation in light |
|---|
| Impact resistance | 30g in XYZ directions and free fall from 1.5m height into gravel |
|---|
| Magnifying lens | Yes |
|---|
| Material | Acrylic/Acetal, PC/ABS, TPU |
|---|
| Patented red/black N/S lines in capsule | Yes |
|---|
| Resolution in degrees / mils | 2 / 50 |
|---|
| Scales | mm, inch |
|---|
| Settling time from 90° angle to complete rest | 5 sec |
|---|
| Settling time from 90° angle within ± 3° | 2.7 sec |
|---|
| Sighting System | Mirror sighting |
|---|
| Silicon friction feet | Yes |
|---|
| Size | 108 x 64 x 20 mm |
|---|
| Temperature operating range | -30°C to +60°C |
|---|
| Type of compass | Baseplate, Silva 1-2-3 System Mirror sighting compass |
|---|
| UTM position plotting scales (Romer Scales) | 1:25k, 1:50k |
|---|
| Variant | Magnetic Equator, Magnetic North, Magnetic South |
|---|
| Water resistance | Waterproof |
|---|
| Weight | 86g |
|---|
