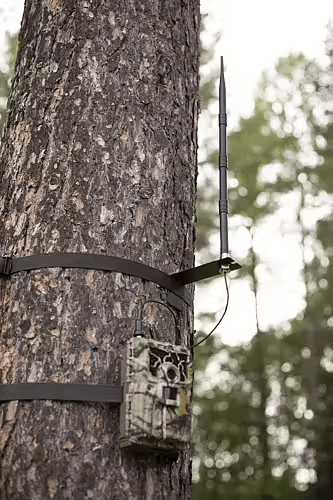

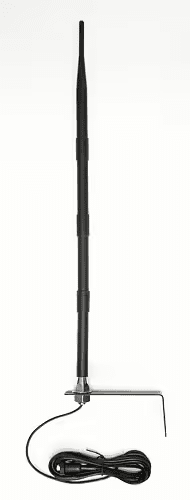

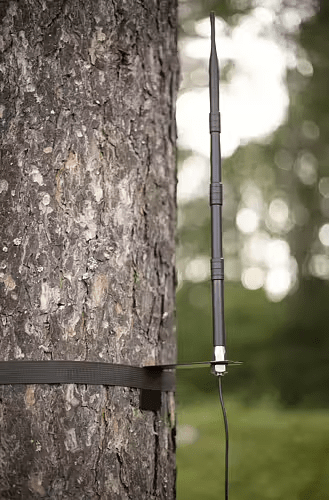

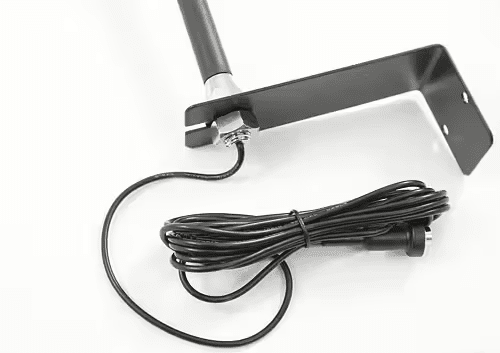

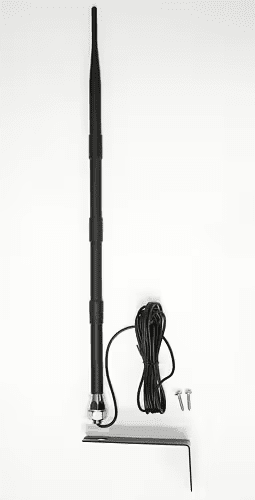

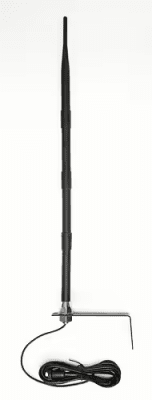

A really robust and good amplification antenna in a flexible format that works on 2G / 3G / 4G / the network. The antenna can be easily clamped or screwed to a tree, sturgeon or house wall using the supplied angled metal bracket.
The antenna fits most cameras on the market with an SMA connector such as UOVision, Scout Guard, Boly Guard, Albecom, Burell etc.
Technical specification:
- Broadband reception for 2G, 3G, 4G.
- Works both outdoors and indoors.

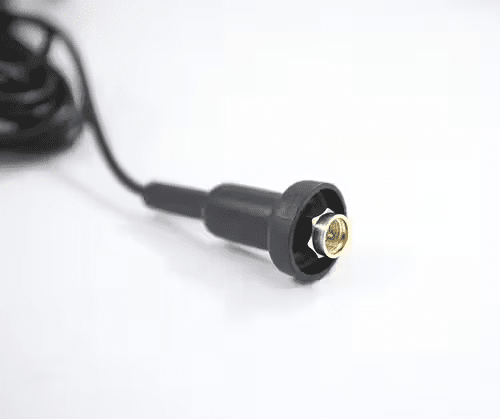

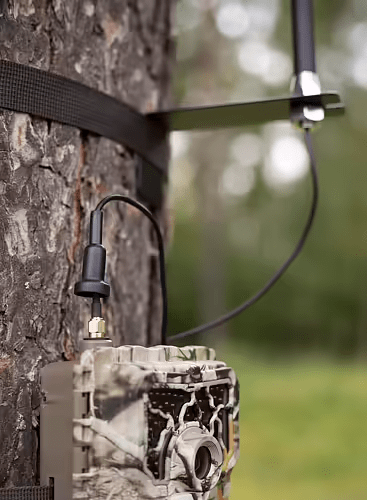

- Protective cap over the SMA connector to protect against water entering via the camera's antenna mount
- Frequency range: 824 - 960, 1710 - 2200
- Impedance: 50 Ohms.
- Gain: 6dBi.
- Polarization: Vertical
- Connection: SMA type.
- Cable length: 3 meters (low loss)
- Length: 42cm
- Colour: Black
- Temperature range: -40 - +85 degrees Celsius
Tip! - My own tests have shown that if you have a gain antenna, you almost always get better reception/stronger signal when you use an external power source for the camera, this is because gain antennas need power to their "amplifier" in order to deliver the best possible reception to the camera. This also applies to original antennas with amplification.
